iOS 的坐標系和我們幾何課本中的二維坐標系并不一樣！
# BezierPath繪制圓弧
使用 UIBezierPath 進行繪制圓弧的方法，通常會直接使用 addArc ：
addArc(withCenter:, radius:, startAngle:, endAngle:, clockwise:)
或者使用 addCurve 進行擬圓弧：
addCurve(to:, controlPoint1:, controlPoint2:)
其實我們可以通過，兩個坐標點(startPoint & endPoint)，和兩點間的線段對應的圓弧的弧度(angle/radian)就能確定這個圓的信息(半徑radius, center)， 所以我們是不是可以封裝出只提供 start, end 和 angle 就能繪制 arc 的函數？
addArc(startPoint: , endPoint: , angle: , clockwise:)
# 計算兩點間的距離
這里邏輯很簡單不做贅述。
func calculateLineLength(_ point1: CGPoint, _ point2: CGPoint) -> CGFloat { let w = point1.x - point2.x let h = point1.y - point2.y return sqrt(w * w + h * h)}# 計算兩點間的夾角
計算 point 和 origin 連線在 iOS 坐標系的角度
func calculateAngle(point: CGPoint, origin: CGPoint) -> Double { if point.y == origin.y { return point.x > origin.x ? 0.0 : -Double.pi } if point.x == origin.x { return point.y > origin.y ? Double.pi * 0.5 : Double.pi * -0.5 } // Note: 修正標準坐標系角度到 iOS 坐標系 let rotationAdjustment = Double.pi * 0.5 let offsetX = point.x - origin.x let offsetY = point.y - origin.y // Note: 使用 -offsetY 是因?yàn)?iOS 坐標系與標準坐標系的區別 if offsetY > 0 { return Double(atan(offsetX / -offsetY)) + rotationAdjustment } else { return Double(atan(offsetX / -offsetY)) - rotationAdjustment }}# 計算圓心的坐標

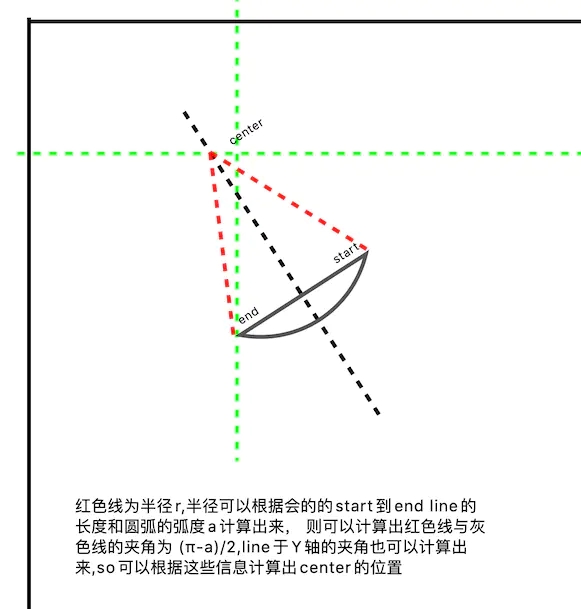

如果你已經將幾何知識丟的差不多了的話，我在這里畫了個大概的草圖，如下( angle 比較小時)：
angle 比較大時：
所以我么可以寫出如下計算中心點的代碼
// Woring: 只計算從start到end **順時針** 計算對應的 **小于π** 圓弧對應的圓心// Note: 計算逆時針(end到start)可以看做將傳入的start和end對調后計算順時針時的圓心位置// Note: 計算大于π的叫相當于將end和start對換后計算2π-angle的順時針圓心位置// Note: 綜上傳入start，end，angle 右外部自行處理邏輯func calculateCenterFor(startPoint start: CGPoint, endPoint end: CGPoint, radian: Double) -> CGPoint { guard radian <= Double.pi else { fatalError("Does not support radian calculations greater than π!") } guard start != end else { fatalError("Start position and end position cannot be equal!") } if radian == Double.pi { let centerX = (end.x - start.x) * 0.5 + start.x let centerY = (end.y - start.y) * 0.5 + start.y return CGPoint(x: centerX, y: centerY) } let lineAB = calculateLineLength(start, end) // 平行 Y 軸 if start.x == end.x { let centerY = (end.y - start.y) * 0.5 + start.y let tanResult = CGFloat(tan(radian * 0.5)) let offsetX = lineAB * 0.5 / tanResult let centerX = start.x + offsetX * (start.y > end.y ? 1.0 : -1.0) return CGPoint(x: centerX, y: centerY) } // 平行 X 軸 if start.y == end.y { let centerX = (end.x - start.x) * 0.5 + start.x let tanResult = CGFloat(tan(radian * 0.5)) let offsetY = lineAB * 0.5 / tanResult let centerY = start.y + offsetY * (start.x < end.x ? 1.0 : -1.0) return CGPoint(x: centerX, y: centerY) } // 普通情況 // 計算半徑 let radius = lineAB * 0.5 / CGFloat(sin(radian * 0.5)) // 計算與 Y 軸的夾角 let angleToYAxis = atan(abs(start.x - end.x) / abs(start.y - end.y)) let cacluteAngle = CGFloat(Double.pi - radian) * 0.5 - angleToYAxis // 偏移量 let offsetX = radius * sin(cacluteAngle) let offsetY = radius * cos(cacluteAngle) var centetX = end.x var centerY = end.y // 以 start 為原點判斷象限區間(iOS坐標系) if end.x > start.x && end.y < start.y { // 第一象限 centetX = end.x + offsetX centerY = end.y + offsetY } else if end.x > start.x && end.y > start.y { // 第二象限 centetX = start.x - offsetX centerY = start.y + offsetY } else if end.x < start.x && end.y > start.y { // 第三象限 centetX = end.x - offsetX centerY = end.y - offsetY } else if end.x < start.x && end.y < start.y { // 第四象限 centetX = start.x + offsetX centerY = start.y - offsetY } return CGPoint(x: centetX, y: centerY)}這里附上一個逆時針繪制第一張圖中圓心位置的草圖，圖中已將 start 和 end 對換
如果你對其中計算時到底該使用 + 還是 - 有困惑的話也可以自己多畫些草圖大概驗證下，總之有疑惑多動手🤭
# 實現我們的目標函數
在有了計算圓心位置，和兩點間角度的函數后我們很容易就能實現 addArc(startPoint: , endPoint: , angle: , clockwise:) 了；
func addArc(startPoint start: CGPoint, endPoint end: CGPoint, angle: Double, clockwise: Bool) { guard start != end && (angle >= 0 && angle <= 2 * Double.pi) else { return } if angle == 0 { move(to: start) addLine(to: end) return } var tmpStart = start, tmpEnd = end, tmpAngle = angle // Note: 保證計算圓心時是從 start 到 end 順時針 小于 π 的角 if tmpAngle > Double.pi { tmpAngle = 2 * Double.pi - tmpAngle (tmpStart, tmpEnd) = (tmpEnd, tmpStart) } if !clockwise { (tmpStart, tmpEnd) = (tmpEnd, tmpStart) } let center = calculateCenterFor(startPoint: tmpStart, endPoint: tmpEnd, radian: tmpAngle) let radius = calculateLineLength(start, center) var startAngle = calculateAngle(point: start, origin: center) var endAngle = calculateAngle(point: end, origin: center) // Note: 逆時針繪制則交換 startAngle 和 endAngle，并且將開始點移動的 end 位置 if !clockwise { (startAngle, endAngle) = (endAngle, startAngle) move(to: end) } addArc(withCenter: center, radius: radius, startAngle: CGFloat(startAngle), endAngle: CGFloat(endAngle), clockwise: true) move(to: end)}# 完結

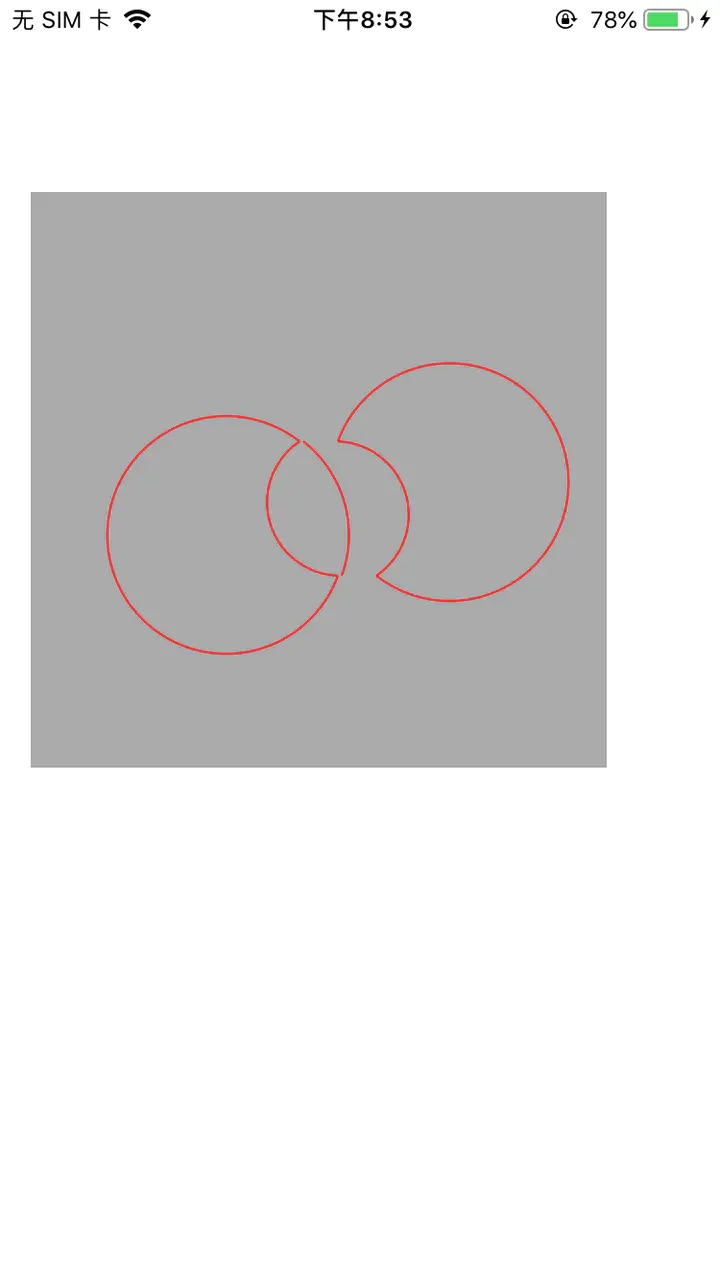

最后也不知道是你否會碰到相同的需求，這里附上源碼和一份樣例及運行結果圖;
override func draw(_ rect: CGRect) { let path = UIBezierPath() var start = CGPoint(x: 160, y: 130) var end = CGPoint(x: 180, y: 200) path.move(to: start) path.addArc(startPoint: start, endPoint: end, angle: Double.pi * 1.6, clockwise: true) path.move(to: start) path.addArc(startPoint: start, endPoint: end, angle: Double.pi * 0.8, clockwise: true) start = CGPoint(x: 142, y: 130) end = CGPoint(x: 162, y: 200) path.move(to: start) path.addArc(startPoint: start, endPoint: end, angle: Double.pi * 0.4, clockwise: true) start = CGPoint(x: 140, y: 130) end = CGPoint(x: 160, y: 200) path.move(to: start) path.addArc(startPoint: start, endPoint: end, angle: Double.pi * 1.6, clockwise: false) path.move(to: start) path.addArc(startPoint: start, endPoint: end, angle: Double.pi * 0.8, clockwise: false) path.close() path.lineWidth = 1 UIColor.red.setStroke() path.stroke()}
ps: 每次都寫 Double.pi / x 很煩？ 試試類似于 SwiftUI 提供的接口, 使用 度數(degress) 而非 弧度
struct Angle { private var degress: Double static func deggess(_ degress: Double) -> Angle { return .init(degress: degress) } // 弧度 var radians: Double { Double.pi * degress / 180.0 }}// Angle.deggess(90).radians // 1.570796326794897func addArc(startPoint start: CGPoint, endPoint end: CGPoint, angle: Angle, clockwise: Bool)
感謝閱讀，祝好祝順🥰
