線性回歸實戰

使用PyTorch定義線性回歸模型一般分以下幾步：

1.設計網絡架構
2.構建損失函數(loss)和優化器(optimizer)
3.訓練(包括前饋(forward)、反向傳播(backward)、更新模型參數(update))

#author:yuquanle#data:2018.2.5#Study of LinearRegression use PyTorchimport torchfrom torch.autograd import Variable# train datax_data = Variable(torch.Tensor([[1.0], [2.0], [3.0]]))y_data = Variable(torch.Tensor([[2.0], [4.0], [6.0]]))class Model(torch.nn.Module):  def __init__(self):    super(Model, self).__init__()    self.linear = torch.nn.Linear(1, 1) # One in and one out  def forward(self, x):    y_pred = self.linear(x)    return y_pred# our modelmodel = Model()criterion = torch.nn.MSELoss(size_average=False) # Defined loss functionoptimizer = torch.optim.SGD(model.parameters(), lr=0.01) # Defined optimizer# Training: forward, loss, backward, step# Training loopfor epoch in range(50):  # Forward pass  y_pred = model(x_data)  # Compute loss  loss = criterion(y_pred, y_data)  print(epoch, loss.data[0])  # Zero gradients  optimizer.zero_grad()  # perform backward pass  loss.backward()  # update weights  optimizer.step()# After traininghour_var = Variable(torch.Tensor([[4.0]]))print("predict (after training)", 4, model.forward(hour_var).data[0][0])

迭代十次打印結果：

0 123.87958526611328
1 55.19491195678711
2 24.61777114868164
3 11.005026817321777
4 4.944361686706543
5 2.2456750869750977
6 1.0436556339263916
7 0.5079189538955688
8 0.2688019871711731
9 0.16174012422561646
predict (after training) 4 7.487752914428711

loss還在繼續下降，此時輸入4得到的結果還不是預測的很準

當?shù)螖?shù)設置為50時：

0 35.38422393798828
5 0.6207122802734375
10 0.012768605723977089
15 0.0020055510103702545
20 0.0016929294215515256
25 0.0015717096393927932
30 0.0014619173016399145
35 0.0013598509831354022
40 0.0012649153359234333
45 0.00117658288218081
50 0.001094428705982864
predict (after training) 4 8.038028717041016

此時，函數已經擬合比較好了

再運行一次：

0 159.48605346679688
5 2.827991485595703
10 0.08624256402254105
15 0.03573693335056305
20 0.032463930547237396
25 0.030183646827936172
30 0.02807590737938881
35 0.026115568354725838
40 0.02429218217730522
45 0.022596003487706184
50 0.0210183784365654
predict (after training) 4 7.833342552185059

發現同為迭代50次，但是當輸入為4時，結果不同，感覺應該是使用pytorch定義線性回歸模型時:
torch.nn.Linear(1, 1)，只需要知道輸入和輸出維度，里面的參數矩陣是隨機初始化的(具體是不是隨機的還是按照一定約束條件初始化的我不確定)，所有每次計算loss會下降到不同的位置(模型的參數更新從而也不同)，導致結果不一樣。

邏輯回歸實戰

線性回歸是解決回歸問題的，邏輯回歸和線性回歸很像，但是它是解決分類問題的(一般二分類問題:0 or 1)。也可以多分類問題(用softmax可以實現)。

使用pytorch實現邏輯回歸的基本過程和線性回歸差不多，但是有以下幾個區別：

PyTorch,線性回歸,邏輯回歸

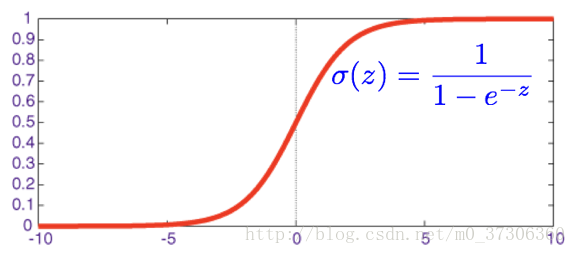

下面為sigmoid函數：

PyTorch,線性回歸,邏輯回歸

在邏輯回歸中，我們預測如果當輸出大于0.5時，y=1;否則y=0。

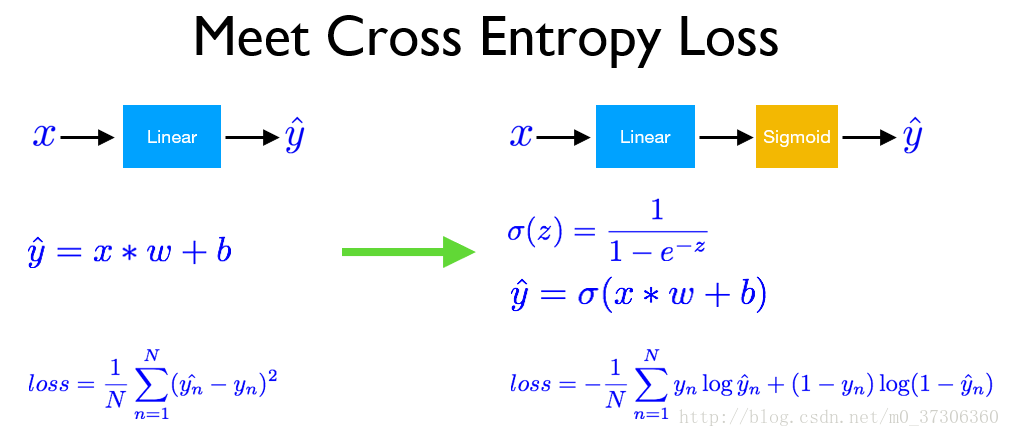

損失函數一般采用交叉熵loss:

PyTorch,線性回歸,邏輯回歸

# date:2018.2.6# LogisticRegressionimport torchfrom torch.autograd import Variablex_data = Variable(torch.Tensor([[0.6], [1.0], [3.5], [4.0]]))y_data = Variable(torch.Tensor([[0.], [0.], [1.], [1.]]))class Model(torch.nn.Module):  def __init__(self):    super(Model, self).__init__()    self.linear = torch.nn.Linear(1, 1) # One in one out    self.sigmoid = torch.nn.Sigmoid()  def forward(self, x):    y_pred = self.sigmoid(self.linear(x))    return y_pred# Our modelmodel = Model()# Construct loss function and optimizercriterion = torch.nn.BCELoss(size_average=True)optimizer = torch.optim.SGD(model.parameters(), lr=0.01)# Training loopfor epoch in range(500):  # Forward pass  y_pred = model(x_data)  # Compute loss  loss = criterion(y_pred, y_data)  if epoch % 20 == 0:    print(epoch, loss.data[0])  # Zero gradients  optimizer.zero_grad()  # Backward pass  loss.backward()  # update weights  optimizer.step()# After traininghour_var = Variable(torch.Tensor([[0.5]]))print("predict (after training)", 0.5, model.forward(hour_var).data[0][0])hour_var = Variable(torch.Tensor([[7.0]]))print("predict (after training)", 7.0, model.forward(hour_var).data[0][0])

輸入結果：

0 0.9983477592468262
20 0.850886881351471
40 0.7772406339645386
60 0.7362991571426392
80 0.7096697092056274
100 0.6896909475326538
120 0.6730546355247498
140 0.658246636390686
160 0.644534170627594
180 0.6315458416938782
200 0.6190851330757141
220 0.607043981552124
240 0.5953611731529236
260 0.5840001106262207
280 0.5729377269744873
300 0.5621585845947266
320 0.5516515970230103
340 0.5414079427719116
360 0.5314203500747681
380 0.5216821432113647
400 0.512187123298645
420 0.5029295086860657
440 0.49390339851379395
460 0.4851033389568329
480 0.47652381658554077
predict (after training) 0.5 0.49599987268447876
predict (after training) 7.0 0.9687209129333496

Process finished with exit code 0

訓練完模型之后，輸入新的數據0.5，此時輸出小于0.5，則為0類別，輸入7輸出大于0.5，則為1類別。使用softmax做多分類時，那個維度的數值大，則為那個數值所對應位置的類別。

更深更寬的網絡

前面的例子都是淺層輸入為一維的網絡，如果需要更深更寬的網絡，使用pytorch也可以很好的實現，以邏輯回歸為例：

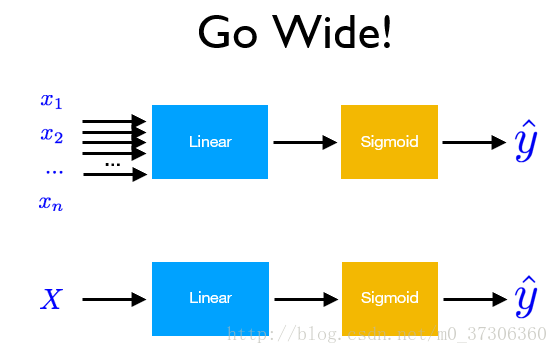

當輸入x的維度很大時，需要更寬的網絡:

PyTorch,線性回歸,邏輯回歸

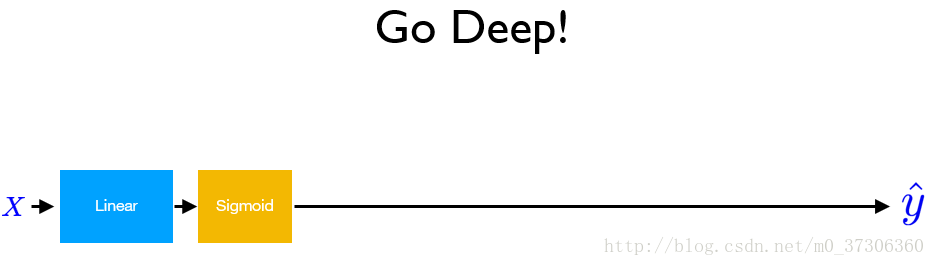

更深的網絡：

PyTorch,線性回歸,邏輯回歸

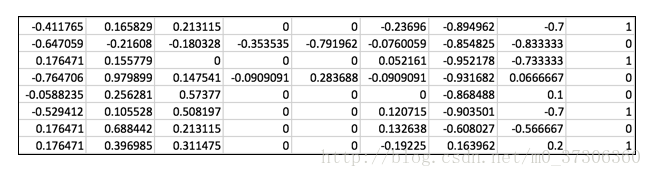

采用下面數據集(下載地址:https://github.com/hunkim/PyTorchZeroToAll/tree/master/data)

PyTorch,線性回歸,邏輯回歸

輸入維度為八。

#author:yuquanle#date:2018.2.7#Deep and Wideimport torchfrom torch.autograd import Variableimport numpy as npxy = np.loadtxt('./data/diabetes.csv', delimiter=',', dtype=np.float32)x_data = Variable(torch.from_numpy(xy[:, 0:-1]))y_data = Variable(torch.from_numpy(xy[:, [-1]]))#print(x_data.data.shape)#print(y_data.data.shape)class Model(torch.nn.Module):  def __init__(self):    super(Model, self).__init__()    self.l1 = torch.nn.Linear(8, 6)    self.l2 = torch.nn.Linear(6, 4)    self.l3 = torch.nn.Linear(4, 1)    self.sigmoid = torch.nn.Sigmoid()  def forward(self, x):    x = self.sigmoid(self.l1(x))    x = self.sigmoid(self.l2(x))    y_pred = self.sigmoid(self.l3(x))    return y_pred# our modelmodel = Model()cirterion = torch.nn.BCELoss(size_average=True)optimizer = torch.optim.SGD(model.parameters(), lr=0.001)hour_var = Variable(torch.Tensor([[-0.294118,0.487437,0.180328,-0.292929,0,0.00149028,-0.53117,-0.0333333]]))print("(Before training)", model.forward(hour_var).data[0][0])# Training loopfor epoch in range(1000):  y_pred = model(x_data)  # y_pred,y_data不能寫反(因為損失函數為交叉熵loss)  loss = cirterion(y_pred, y_data)  optimizer.zero_grad()  loss.backward()  optimizer.step()  if epoch % 50 == 0:    print(epoch, loss.data[0])# After traininghour_var = Variable(torch.Tensor([[-0.294118,0.487437,0.180328,-0.292929,0,0.00149028,-0.53117,-0.0333333]]))print("predict (after training)", model.forward(hour_var).data[0][0])

結果：

(Before training) 0.5091859698295593
0 0.6876295208930969
50 0.6857835650444031
100 0.6840178370475769
150 0.6823290586471558
200 0.6807141900062561
250 0.6791688203811646
300 0.6776910424232483
350 0.6762782335281372
400 0.6749269366264343
450 0.6736343502998352
500 0.6723981499671936
550 0.6712161302566528
600 0.6700847744941711
650 0.6690039038658142
700 0.667969822883606
750 0.666980504989624
800 0.6660353541374207
850 0.6651310324668884
900 0.664265513420105
950 0.6634389758110046
predict (after training) 0.5618339776992798
Process finished with exit code 0
