Face++ API實現手勢識別系統設計

2020-01-04 14:00:55
字體:
來源:轉載
供稿:網友

 通過普通攝像頭拍攝出的照片來進行識別是存在很大的困難的,但是有困難才能找到更好的方法去解決。在百度上大致找了一下手語識別的案例,很少。API只是看到了Face++發布的手勢識別,在我寫文章的時候又看到了百度發布的手勢識別API,之后會嘗試去進行使用。

        這次使用的是Face++的API,F(xiàn)ace++的API是在之前發現的,功能上的話還是比較強大的,但是沒有離線版本,需要將數據進行上傳,然后對JSON進行解析得到結果。

Face++,API,手勢識別

這是官網給出的一個Demo,識別率挺不錯的,最后給出的是一個在20種手勢上的分布概率,接下來我們自己調用一下API分析自己的手勢。

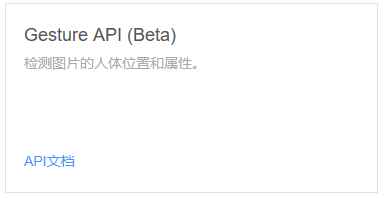

1. 查看官方的API。找到Gesture API,先看一下是怎么說的。

Face++,API,手勢識別

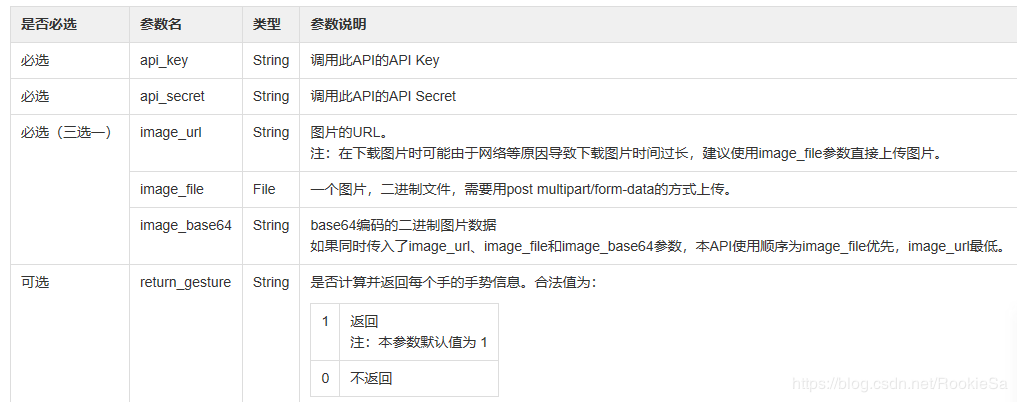

調用參數:

Face++,API,手勢識別

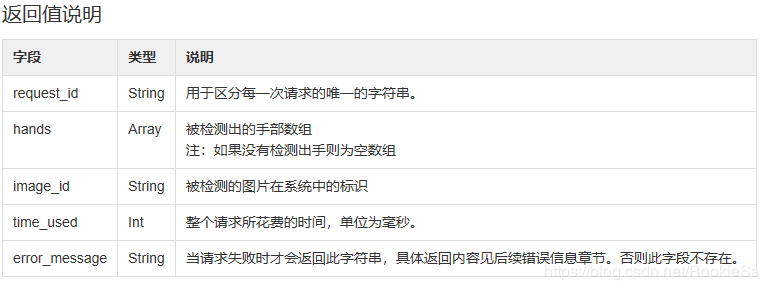

Face++,API,手勢識別

官方還給出了一些調用錯誤返回的參數的說明,有興趣的可以去官網看一下。

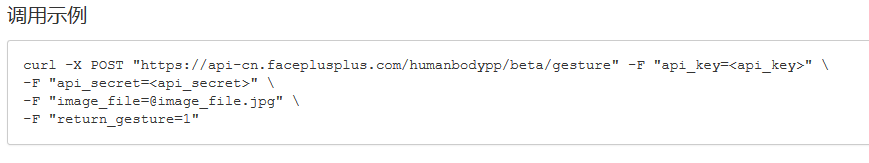

還給出了一個使用命令行調用API的實例:

Face++,API,手勢識別

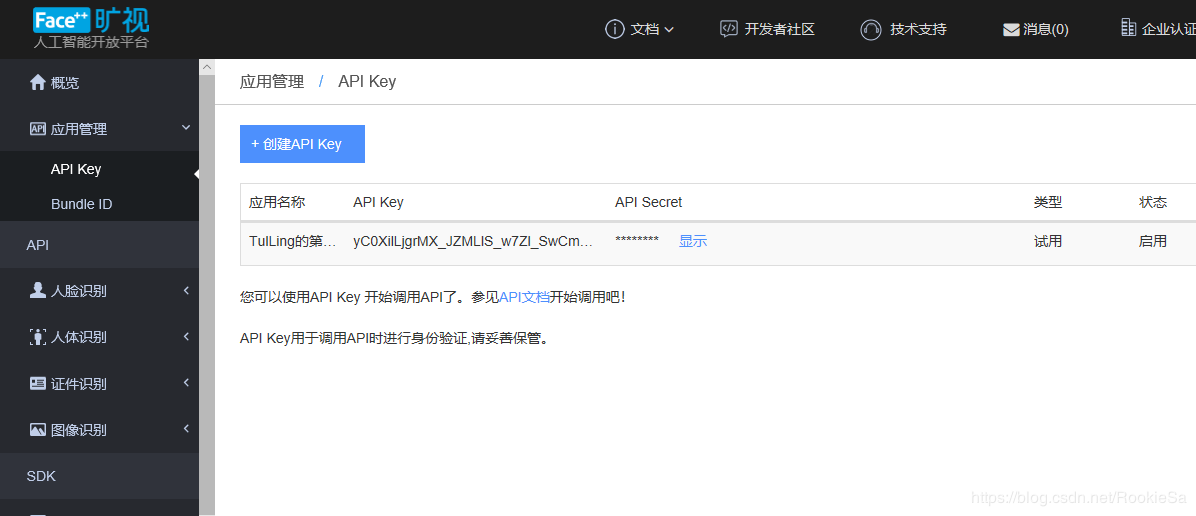

從實例上不難看出,向 https://api-cn.faceplusplus.com/humanbodypp/beta/gesture 發送請求,默認的參數有 api_key,api_secret,image_file。api_key和api_secret可以通過控制臺進行生成。

Face++,API,手勢識別

接下來開始寫代碼的調用,Python版本的,其他版本的類似。

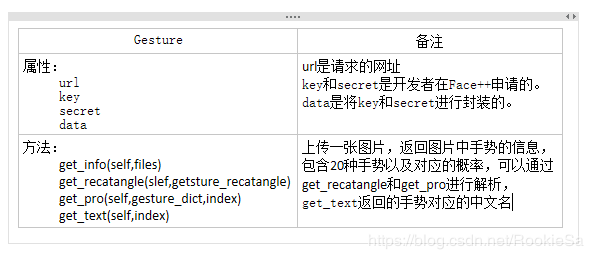

我們將API封裝成一個類 Gesture:

Face++,API,手勢識別

將其中的key和secret替換成自己的就可以使用:

'''# -*- coding:utf-8 -*-@author: TulLing'''import requests from json import JSONDecoder  gesture_englist = ['big_v','fist','double_finger_up','hand_open','heart_d','index_finger_up','ok','phonecall','palm_up','rock','thumb_down','thumb_up','victory']gesture_chinese = ["我最帥",   "拳頭,停下",   "我發誓",   "數字5",   "比心",   "數字1",   "好的呢,OK",   "打電話",   "手心向上",   "愛你,520",   "差評,不好的",   "好評,Good,很棒",   "勝利,開心"]# 將字典排序def sort_dict(adict): return sorted(adict.items(),key= lambda item:item[1]) class Gesture(object): def __init__(self): self.http_url = 'https://api-cn.faceplusplus.com/humanbodypp/beta/gesture' self.key = '*****' self.secret = '******' self.data = {"api_key":self.key,"api_secret":self.secret}   # 獲取手勢信息 def get_info(self,files): response = requests.post(self.http_url,data=self.data,files=files) req_con = response.content.decode('utf-8') req_dict = JSONDecoder().decode(req_con) #print(req_dict) if('error_message' not in req_dict.keys()) and (len(req_dict['hands'])): # 獲取  hands_dict = req_dict['hands']  #print(type(hands_dict))  # 獲取到手的矩形的字典  gesture_rectangle_dict = hands_dict[0]['hand_rectangle']  # 獲取到手勢的字典  gesture_dict = hands_dict[0]['gesture']    return gesture_dict,gesture_rectangle_dict else:  return [],[];  # 獲取到手勢文本信息 def get_text(self,index): return gesture_chinese[index]  # 獲取到手勢對應的概率 def get_pro(self,gesture_dict,index): # print(gesture_dict) if(gesture_dict is None or gesture_dict == []):  return 0 return gesture_dict[gesture_englist[index]]  # 獲取到手勢的位置 def get_rectangle(self,gesture_rectangle_dict): if(gesture_rectangle_dict is None or gesture_rectangle_dict == []):  return (0,0,0,0) x = gesture_rectangle_dict['top'] y = gesture_rectangle_dict['left'] width = gesture_rectangle_dict['width'] height = gesture_rectangle_dict['height'] return (x,y,width,height)

封裝好了Gesture類后接下來就是調用:先將官方給出的手勢的圖片保存起來,為了方便只保留單手的手勢,然后生成隨機數讀取手勢圖片,我們?nèi)ツ7率謩?shì),后臺顯示是正確手勢的概率以及具體的位置,如果圖像中沒有手勢則概率為0,位置為(0,0,0,0)。

'''# -*- coding:utf-8 -*-@author: TulLing'''import syssys.path.append("../gesture/") import osimport randomimport cv2 as cvimport timeimport LearnGesture def gestureLearning(): os.system("cls") print("進入學習手勢模式!") print("我們有13個手勢,來和我學吧!(每次結束后可以選擇輸入 Q/q 退出!)") while(True): pic_num = random.randint(0,12) # 生成顯示的圖片的編號(隨機數: 0 - 13) print(pic_num) pic_path = '../gesture/pic/gesture' + str(pic_num) + ".jpg" # 生成圖片路徑  pic = cv.imread(pic_path) # 加載圖片 pic = cv.resize(pic,(120,120)) cv.imshow("PIC",pic) # 顯示要學習的手勢  print("即將打開攝像頭,你有5秒種的時間準備手勢,5秒種保持手勢!") write_path = "../gesture/pic/test.jpg" cap = cv.VideoCapture(1) while(True):  _,frame = cap.read()  cv.imshow("Frame",frame)  key = cv.waitKey(10)  if(key == ord('Q') or key == ord('q')):  cv.imwrite(write_path,frame)  cv.waitKey(200)  cap.release()  cv.destroyAllWindows()  break   # 此處應該有手勢識別 files = {"image_file":open(write_path,'rb')} gesture = LearnGesture.Gesture()  # 獲取到手勢文本 ge_text = gesture.get_text(pic_num) # 獲取手勢信息 gesture_dict,gesture_rectangle_dict = gesture.get_info(files) # 獲取手勢的概率 ge_pro = gesture.get_pro(gesture_dict,pic_num) # 獲取到手勢的坐標 ge_rect = gesture.get_rectangle(gesture_rectangle_dict) print("您學習的手勢是:",ge_text) print("相似度達到:",ge_pro) print("具體位置:",ge_rect)   # print("一輪學習結束,是否繼續學習?(Y/N)") # 退出程序,回到主菜單或者繼續 commend = input("一輪學習結束,是否繼續學習?(Y/N):") print(commend)  if( commend == 'N' or commend == "n"):  breakgestureLearning()

Face++,API,手勢識別

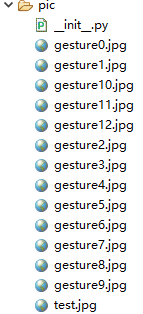

圖片保存的路徑:./pic/

運行結果:

Face++,API,手勢識別

顯示的隨機手勢

Face++,API,手勢識別

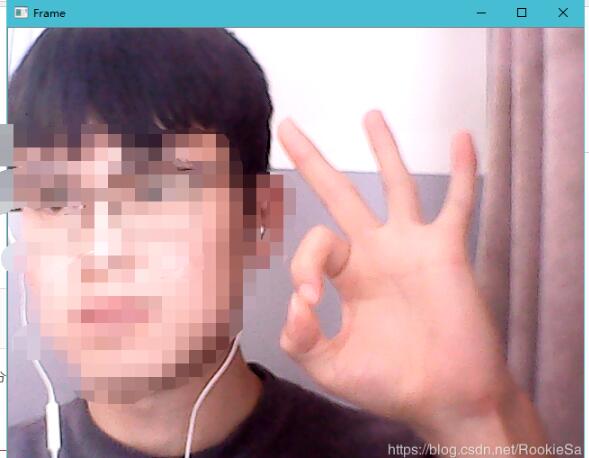

模仿的手勢(打個碼,主要看手)

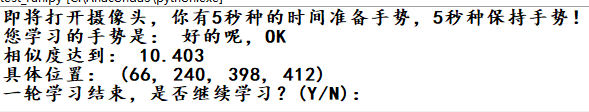

點擊Q后:

Face++,API,手勢識別

手勢做的有點不標準,但是沒關系,系統可以運行。

調用Face++API的文章到此結束。代碼打包后會上傳。之后會修改鏈接地址。

以上就是本文的全部?jī)?nèi)容,希望對大家的學習有所幫助,也希望大家多多支持VEVB武林網。
