Ubuntu16.04Docker的CS模式

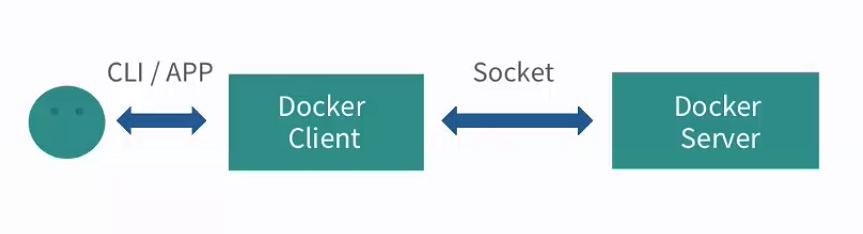

Remote API

docker除了使用命令讓用戶通過客戶端與docker的守護進行通信,也提供了Remote API方式的通信接口

RESTful風(fēng)格API

STDIN,STDOUT,STDERR

連接方式

使用socket方式進行連接,有下列三種方式

unix:///var/run/docker.sock

eggyer@ubuntu:/usr/local/dockerfile/df_test1$ docker versionClient: Version:   1.9.1 API version: 1.21 Go version:  go1.4.3 Git commit:  a34a1d5 Built:    Fri Nov 20 17:56:04 UTC 2015 OS/Arch:   linux/amd64Server: Version:   1.9.1 API version: 1.21 Go version:  go1.4.3 Git commit:  a34a1d5 Built:    Fri Nov 20 17:56:04 UTC 2015 OS/Arch:   linux/amd64

如上所示可以看到server中APIversion(remote API的版本)

通過unix:///var/run/docker.sock訪問

注意發(fā)送HTTP請求時輸入完get信息后要連按兩次回車

eggyer@ubuntu:/usr/local/dockerfile/df_test1$ nc -U /var/run/docker.sockGET /info HTTP/1.1HTTP/1.1 200 OKContent-Type: application/jsonServer: Docker/1.9.1 (linux)Date: Sat, 26 Nov 2016 14:33:45 GMTContent-Length: 1162{"ID":"WBMI:TD6B:PRUN:XWSX:5RVV:QUYO:5S27:W74L:MQ3W:YDB7:JXPL:NR5X","Containers":12,"Images":11,"Driver":"aufs","DriverStatus":[["Root Dir","/var/lib/docker/aufs"],["Backing Filesystem","extfs"],["Dirs","35"],["Dirperm1 Supported","true"]],"MemoryLimit":true,"SwapLimit":false,"CpuCfsPeriod":true,"CpuCfsQuota":true,"IPv4Forwarding":true,"BridgeNfIptables":true,"BridgeNfIp6tables":true,"Debug":false,"NFd":19,"OomKillDisable":true,"NGoroutines":33,"SystemTime":"2016-11-26T22:33:45.641108177+08:00","ExecutionDriver":"native-0.2","LoggingDriver":"json-file","NEventsListener":0,"KernelVersion":"4.4.0-47-generic","OperatingSystem":"Ubuntu 16.04.1 LTS (containerized)","IndexServerAddress":"https://index.docker.io/v1/","RegistryConfig":{"InsecureRegistryCIDRs":["127.0.0.0/8"],"IndexConfigs":{"docker.io":{"Name":"docker.io","Mirrors":null,"Secure":true,"Official":true}},"Mirrors":null},"InitSha1":"","InitPath":"/usr/bin/docker","NCPU":4,"MemTotal":4125528064,"DockerRootDir":"/var/lib/docker","HttpProxy":"","HttpsProxy":"","NoProxy":"","Name":"ubuntu","Labels":null,"ExperimentalBuild":false,"ServerVersion":"1.9.1","ClusterStore":"","ClusterAdvertise":""}
